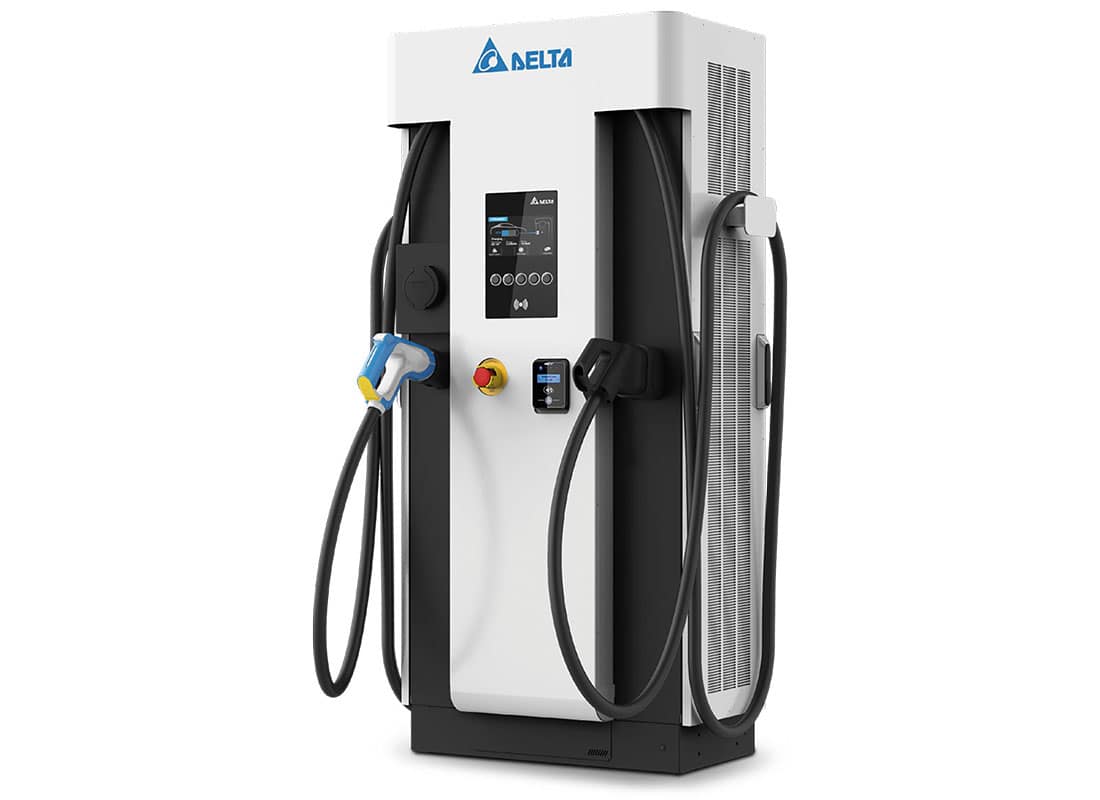

DELTA SLIM100 – High-Performance 100 kW DC Fast Charger

2 × 50 kW Simultaneous Charging

The Delta SLIM100 is a next-generation DC fast charger designed for high-demand environments requiring rapid charging and minimal footprint. Delivering up to 100 kW of total output, it supports multiple charging configurations, including dual DC charging or combined AC and DC operation.

Advanced energy management and high-efficiency rectifiers ensure optimal performance while reducing operational costs. Its slim, floor-standing design makes it particularly suitable for space-critical sites without compromising power or durability.

Built for continuous outdoor operation, the SLIM100 integrates seamlessly into modern charging networks and supports multiple payment and authentication methods.

Key Features

  • Up to 100 kW total output (2 × 50 kW DC)
  • Supports CCS, CHAdeMO, and Type 2 AC charging
  • High-efficiency rectifiers (up to 97%)
  • Advanced load distribution and energy management
  • Slim footprint for space-restricted installations
  • Full OCPP connectivity and backend integration
  • RFID and credit-card authentication options
  • Rugged, weather-resistant outdoor design

Ideal For:
High-traffic dealership fast-charge bays, logistics fleets, highway service centres, and commercial charging hubs.

Specifications

Product Delta DC Charger / SLIM 100
Maximum DC Power 100 kW
DC Output Voltage Range 200 – 920 V DC
Maximum DC Current 250 A DC (at 400 V DC)
DC Charging Standards CCS up to 100 kW (250 A DC) • CHAdeMO up to 62.5 kW
AC Charging Point Type 2 socket up to 22 kW (400 V RMS, 3 × 32 A)
AC Input 3-Phase, L1/L2/L3/N/PE, Dual AC feed • 400 V RMS (L-L) ±10% • 50/60 Hz • 203 A RMS (max)
User Interface 7″ LCD • 5 buttons • Emergency stop (optional)
User Authentication RFID & NFC • Credit card terminal (optional) • Autocharge • ISO 15118-2
Network Connectivity Ethernet • Cellular (2G / 3G / 4G)
Protocols / Integration OCPP 1.5 / 1.6 • Modbus TCP (load & energy management integration)
Protections Over current • Under/Over voltage • Short circuit • Ground fault • Isolation monitoring
Ingress / Impact Protection IP55 • IK10 (enclosure) • IK08 (display)
Cooling Forced air
Operating Conditions -25°C to +50°C • <95% RH (non-condensing) • Up to 2000 m altitude
Dimensions (W × H × D) 892 × 1616 × 444 mm
Weight 230 kg (configuration dependent)
Compliance / Standards IEC 61851-1/-22/-23 • IEC 61851-21-2 • IEC 62479 • EN 55011 • DIN 18040
