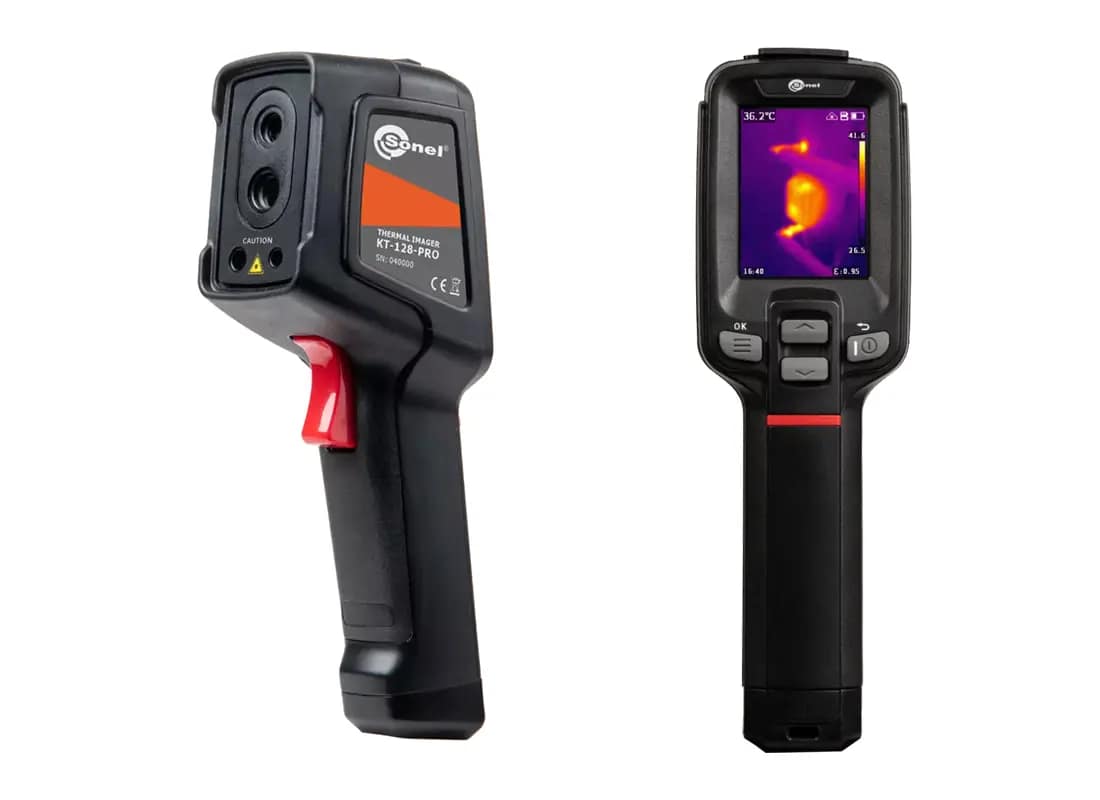

KT-128 PRO Thermal Imager
The KT-128 PRO Thermal Imager is a compact and easy-to-use thermal imaging camera designed for fast temperature measurement, fault detection and preventative maintenance across automotive, electrical and industrial applications. Combining thermal and visual imaging capabilities, the KT-128 PRO allows technicians to quickly identify overheating components, electrical faults, loose connections and abnormal temperature variations before they lead to equipment failure.
Ideal for EV workshops, high-voltage battery servicing, electrical inspections and facility maintenance, the KT-128 PRO delivers reliable thermal diagnostics in a lightweight, handheld design. The camera features a high-resolution infrared detector, integrated visual camera, laser pointer and Wi-Fi connectivity, enabling efficient reporting and image sharing directly from the field.
Designed for everyday professional use, the KT-128 PRO helps technicians improve safety, reduce downtime and support proactive maintenance programmes across modern workshop environments.
Key Features
- Compact handheld thermal imaging camera
- 120 × 90 pixel infrared detector resolution
- Temperature measurement range from -20°C to +550°C
- Integrated visual camera for combined thermal and visual analysis
- Laser pointer for accurate target identification
- 2.4″ colour LCD display
- Wi-Fi connectivity with Sonel KT Mobile App
- Image fusion and picture-in-picture viewing modes
- Temperature alarms with automatic threshold indication
- Internal image storage with 16 GB memory
- USB-C charging and data transfer
- Up to 8 hours operating time on a single charge
- IP54-rated housing for workshop and industrial environments
- Lightweight, portable design for daily use
Applications
- Electric Vehicle (EV) Workshops
- Hybrid Vehicle Diagnostics
- High-Voltage Battery Inspections
- Electrical Switchgear Inspections
- Power Distribution Systems
- Solar PV Installations
- HVAC Maintenance
- Industrial Preventative Maintenance
- Building Diagnostics and Energy Audits
- Mechanical Equipment Monitoring
Technical Specifications
| Product | KT-128 PRO Thermal Imager |
| Detector Resolution | 120 × 90 pixels (VOx) |
| Spectral Range | 7.5 – 14 μm |
| Temperature Range | -20°C to +550°C |
| Accuracy | ±2°C or ±2% of reading |
| Thermal Sensitivity (NETD) | 60 mK |
| Focus | Fixed Focus |
| Display | 2.4″ LCD (240 × 320 pixels) |
| Image Modes | IR • Visual • Infrafusion • Picture-in-Picture |
| Visual Camera | 2 MP Integrated Camera |
| Laser Pointer | Integrated |
| Wireless Connectivity | Wi-Fi (Sonel KT Mobile App) |
| Storage | 16 GB Internal Memory |
| Interfaces | USB Type-C • Tripod Mount |
| Battery | Rechargeable Li-Ion |
| Operating Time | Up to 8 Hours |
| Charging Time | < 2.5 Hours |
| Ingress Protection | IP54 |
| Operating Temperature | -15°C to +50°C |
| Weight | Approx. 0.36 kg |
